Spatial Mesh
Turn environment anchors into visible, collidable game space
The sample maps mesh-anchor add/update/remove events to wireframe entities and static colliders, then interacts with them through pooled projectiles.
- Capability
- Mesh tracking, anchor updates, and collision
- Environment
- UI on emulator; scanning requires headset
- Result
- Shooter UI verified; real mesh remains device-only

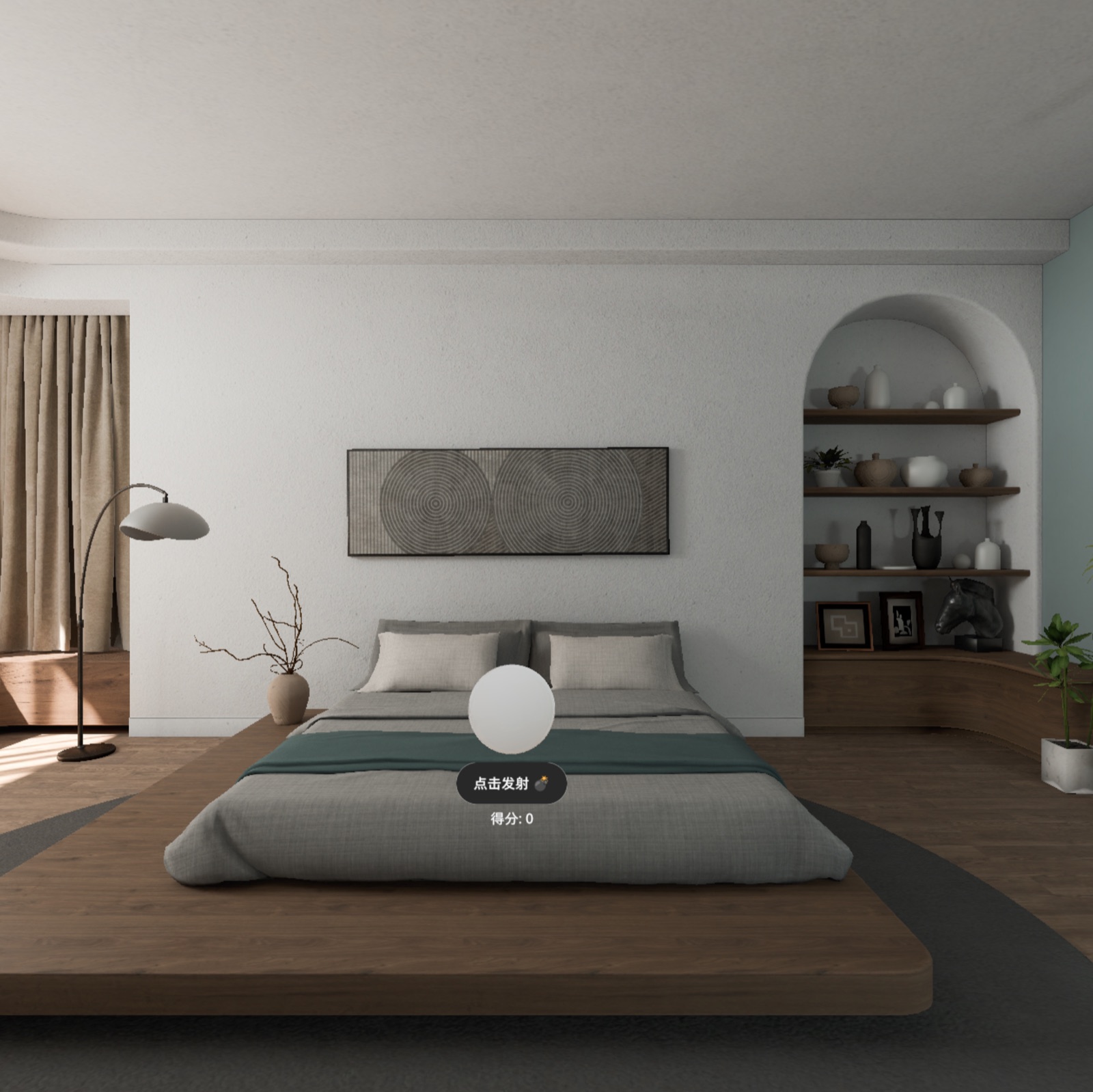

Emulator capture
Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.
Run boundary
The emulator opens the game layer with fire and score controls, but has no real room scan. The projectile proves rendering and the interaction entry point—not anchor accuracy or real-wall collision quality.
Core code: anchor state machine
After MeshTrackingManager.start, the app handles ADDED, UPDATED, and REMOVED. Mesh loading runs on IO while entity updates stay on Main; pendingTransforms handles updates arriving before the first load finishes.
when (anchorUpdate.event) {
ADDED -> handleAdded(uuid, transform)
UPDATED -> handleUpdated(uuid, transform)
REMOVED -> handleRemoved(uuid)
}
val mesh = withContext(Dispatchers.IO) {
MeshResource.loadFromMeshAnchor(uuid)
}The UUID-to-Entity map is the primary index for the scan lifecycle.
Core code: static mesh and projectile pool
Environment meshes use createStaticMesh and collide only with GROUP_AMMO. Thirty-two projectiles are preallocated and fully reset on free to avoid runtime allocation spikes.
private const val MAX = 32
private val freeIndices = IntArray(MAX) { it }
fun allocate(): Int = freeIndices[--freeCount]
fun free(index: Int) {
ammo.enabled = false
ammo.components.set(PhysicsVelocityComponent())
freeIndices[freeCount++] = index
}A pooled entity needs a complete reset contract or old physics state will leak into its next use.
