PICO SPATIAL SDK · 0.10.7Emulator verified

Physics

A domino chain through the complete collision pipeline

The sample joins mesh colliders, physics materials, dynamic rigid bodies, initial velocity, and collision events into one observable loop.

Capability: Rigid bodies, colliders, and event subscriptions
Environment: PICO Emulator 0.10
Result: Scene and start control rendered

RUN EVIDENCE

Emulator capture

Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

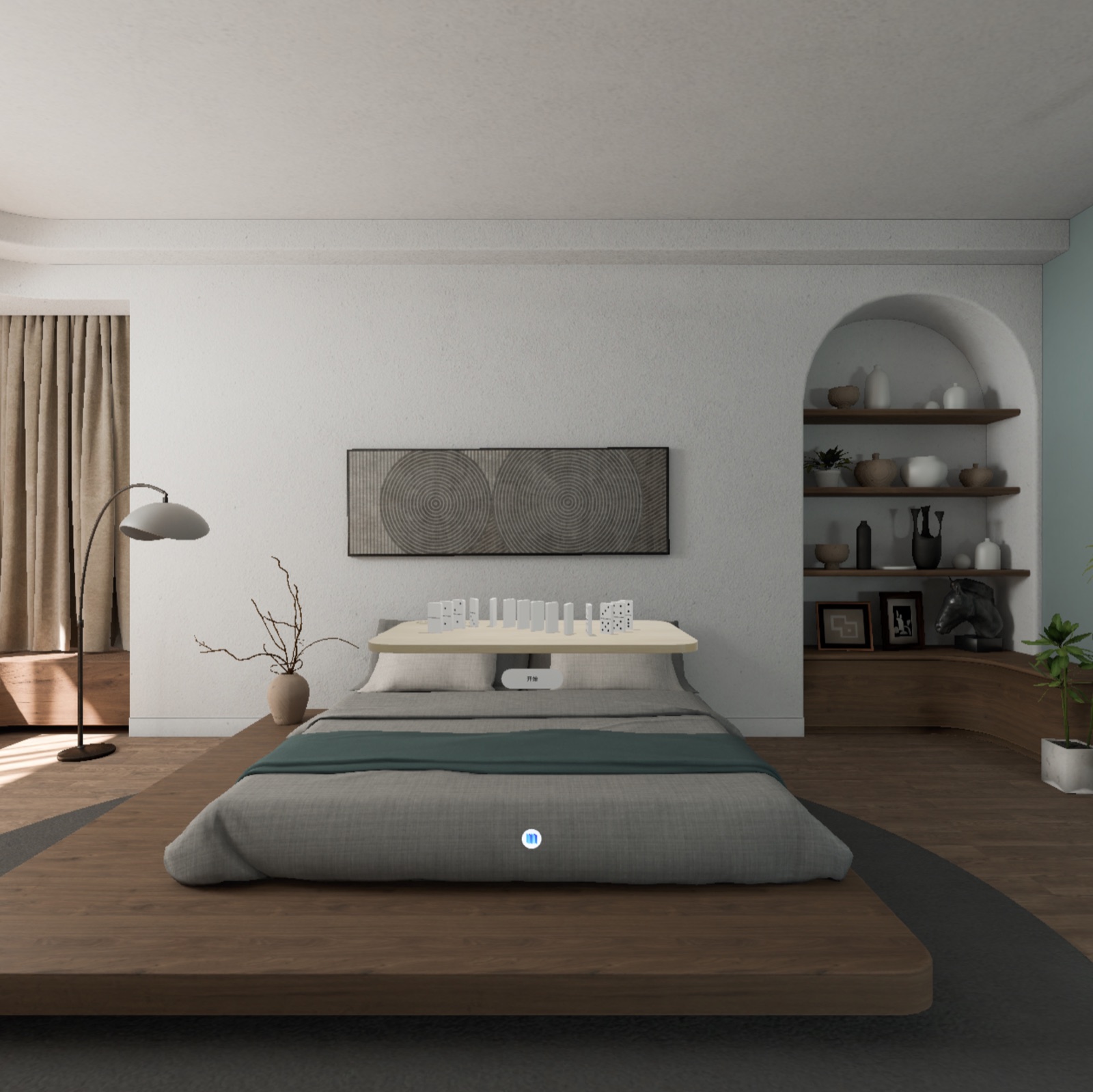

Domino physics scene in the PICO emulator — Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

What the run proved

Fourteen dominoes load on the table; the first receives velocity only after Start. Separating initialization from triggering makes scene and physics debugging much clearer.

Core code: static table, dynamic dominoes

Table and dominoes use convex shapes, but only dominoes get dynamic rigid bodies. Mass, center of mass, friction, and restitution shape the chain; velocity starts it.

Core code · kotlinPhysicsManager.kt

RigidBodyComponent().apply {
  massProperties = MassProperties(
    mass = 0.04f,
    centerOfMass = Vector3(0f, 0f, 0.02f)
  )
  rigidBodyMode = RigidBodyMode.DYNAMIC
  isAffectedByGravity = true
}

Tune physics parameters as a set; mass alone rarely explains behavior.

Core code: collisions drive visual feedback

EventManager retains a cancellable subscription. On collision enter, a custom DominoComponent index selects the PBR feedback color.

Core code · kotlinEventManager.kt / PhysicsManager.kt

subscription = content.subscribe(CollisionEvents.Enter::class.java) {
  collisionEnterCallback?.invoke(it)
}
val index = entityA.components[DominoComponent::class.java]?.index
changeMaterial(entityA, dominoColors[index - 1])

Subscriptions must end with the container lifecycle to avoid duplicate callbacks.
