Animation

Two playback paths: skeletal and tween animation

One robot demonstrates the difference between embedded skeletal clips and programmatic transform/material tweening.

Capability: Skeletal, transform, and material animation
Environment: PICO Emulator 0.10
Result: Robot and five motion presets rendered

RUN EVIDENCE

Emulator capture

Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

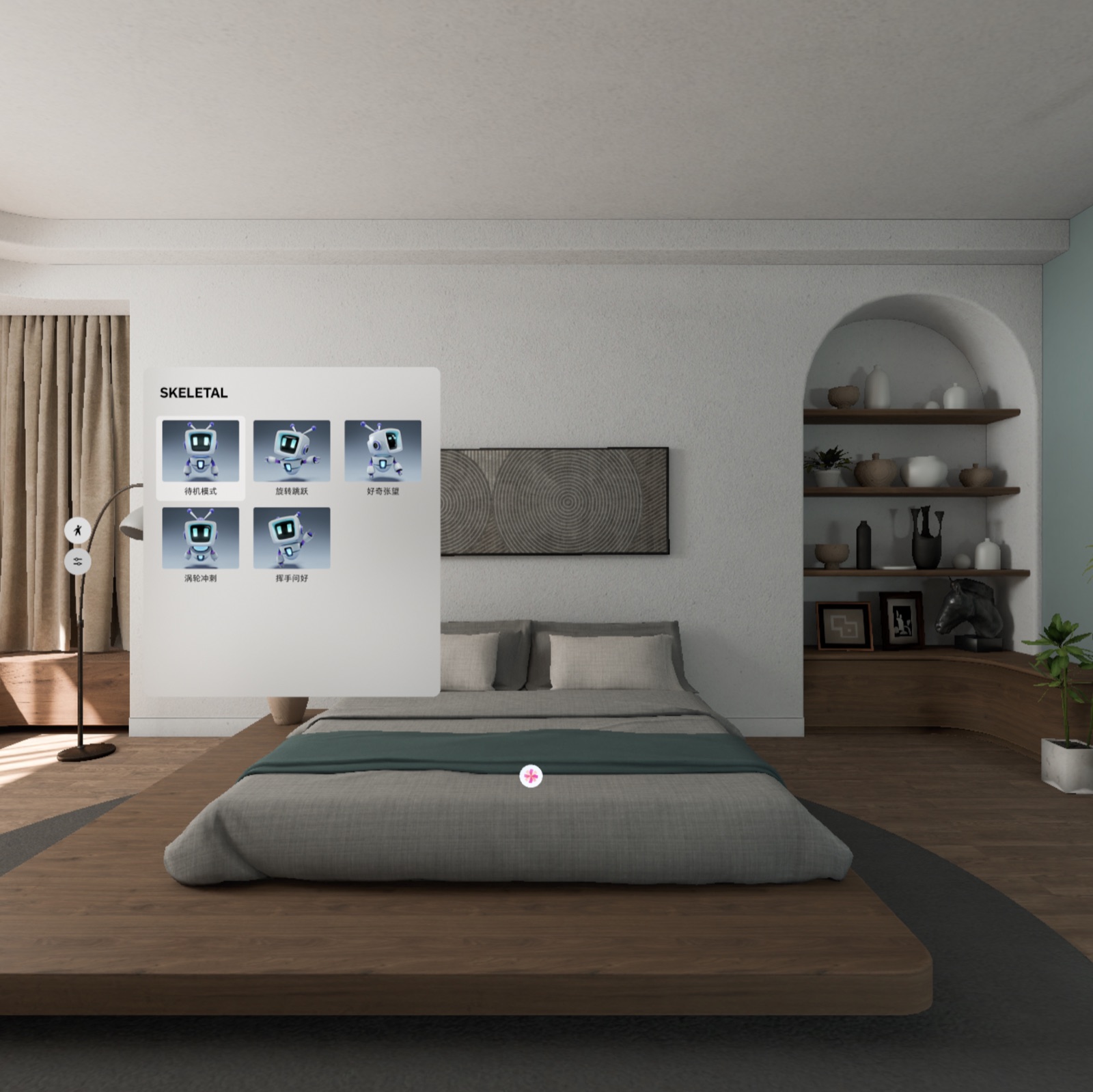

Robot skeletal animation list in the PICO emulator — Captured from the local PICO Emulator 0.10 run; no mockup is used as test evidence.

What the run proved

The emulator exposes five robot clips. UI state is only the command source; playback happens on entities carrying skinned meshes.

Core code: keep clip resources alive

The model loads off the main thread, then all skinned meshes are found and their clip resources retained. Resources stay open during playback and close only during final cleanup.

Core code · kotlinSkeletalAnimationUtil.kt

val character = withContext(Dispatchers.IO) {
  Entity.load("asset://pico_robot_animated.glb")
}
val meshes = entity.findSkinnedMeshEntity().toList()
val clips = meshes.firstOrNull()?.getAnimationResources()
meshes.forEach { it.playAnimation(clips[state.value]) }

Reset stops playback but does not close reusable clip resources.

Core code: tween bind targets

TweenAnimation binds to position, rotation, transform, or a material property. Initial PBR values are recorded first so reset can restore the model exactly.

Core code · kotlinTweenAnimationUtil.kt

TweenAnimation.createTweenAnimation(
  bindTarget = AnimationBindTarget.bindMaterial(
    0, MaterialTarget.BASE_COLOR
  ),
  from = initialColor,
  to = targetColor,
  duration = control.duration
)

The key is correct entity/material binding and a reliable restore path.
